DAC DRAGON SERVER XS22V2

Server Rack Tangguh untuk Infrastruktur Skala Besar

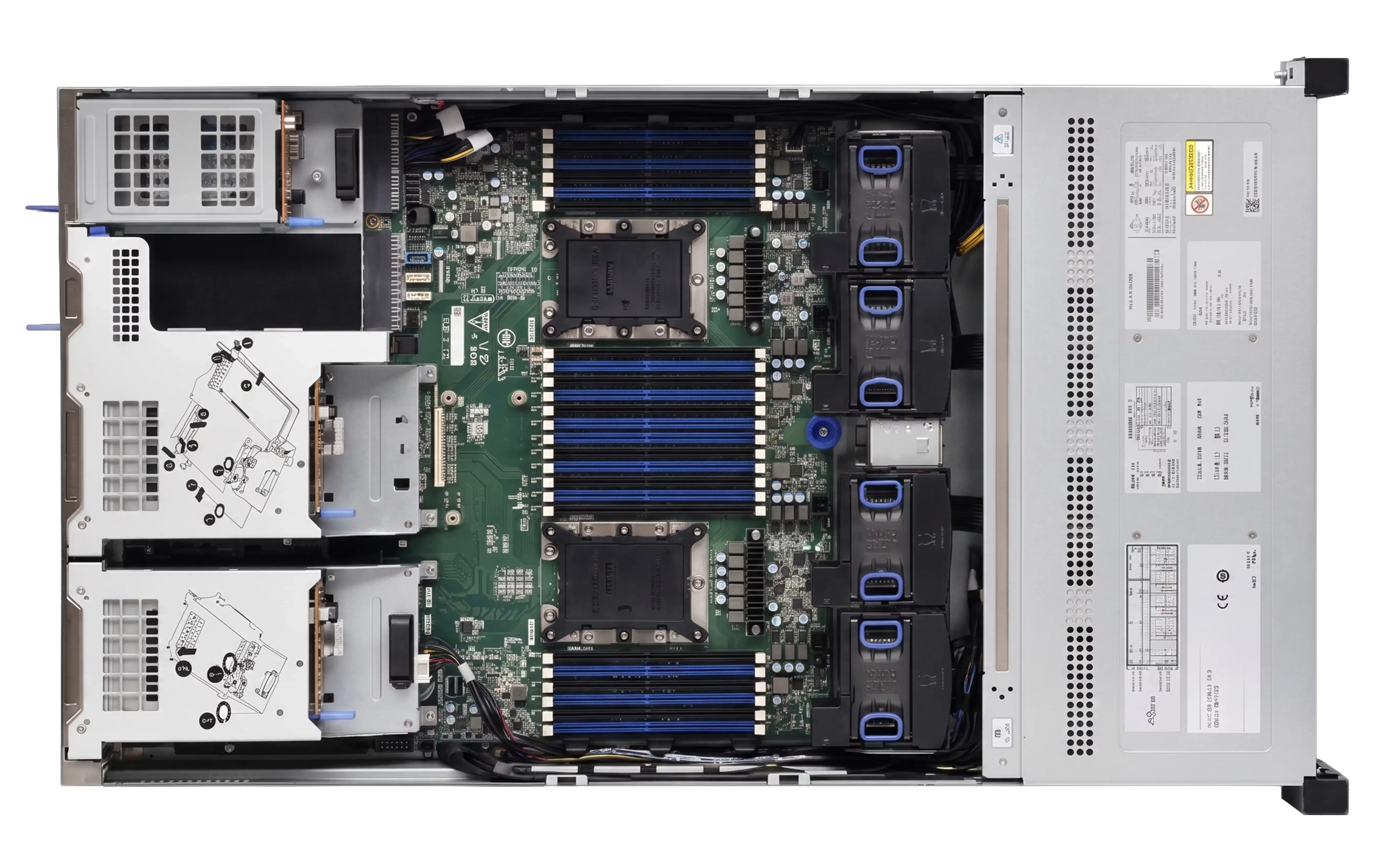

DAC DRAGON SVR XS22 adalah server rack 2U yang tangguh, dirancang untuk kebutuhan infrastruktur TI berskala besar. Dengan prosesor Intel Xeon dan memori ECC, server ini menjamin kinerja optimal dan keandalan data untuk pusat data dan lingkungan perusahaan.

Tipe & Spesifikasi

Pilih tipe produk untuk melihat spesifikasi lengkap

Tipe Produk
DAC DRAGON SVR XS22V2 (SV5RWX)
  • Base: DAC DRAGON SVR XS22V2 Server
  • Rackmount: 2U Chassis
  • Chipset: Intel C621A
  • Processor Support: 1 or 2x 3rd Generation Intel Xeon Scalable Processors
  • Installed Processor: Intel® Xeon® Silver 4310, 2.1G, 12C/24T, 18M Cache, 10.4GT/s, Turbo, TDP (120W)
  • Memory Speed: DDR4-2666 - Max (up to 3200MT/s)
  • Maximum Memory: 1TB (32 DIMM Slots)
  • Installed Memory: 32GB ECC RDIMM
  • Internal Storage Controllers: Support 12x 3.5-inch hard drive carrier (support 2.5-inch HDD/SSD) (support RAID 0, 1, 1E, and 10)
  • Installed HDD: 2x 1TB HDD
  • Security Device: Trusted Platform Module 2.0
  • Network: Onboard 1× 1Gbps IPMI, Support 1×OCP3.0
  • Power Supply: Dual Hot-plug, Redundant Power Supply (1+1)
  • Rear Ports: 1×VGA, 2×USB3.0, 1×RJ45 for BMC, 1×DB9 COM, 1×UID
  • Front Ports: 1×VGA, 2×USB3.0
  • Accessories: Power Cord, Sliding rails, Keyboard & Mouse
  • Operating System: No OS
  • Garansi: 3 Tahun
Unduh Driver untuk DAC DRAGON SVR XS22V2 (SV5RWX)
DAC DRAGON SVR XS22V2 5317 (SVMECI)
  • Base: DAC DRAGON SVR XS22V2 Server
  • Rackmount: 2U Chassis
  • Processor: 3rd Generation Intel Xeon Scalable processors
  • Installed Processor: Intel® Xeon® Gold 5317, 3.0GHz, 12C/24T,18M Cache, 11.2GT/s, Turbo, TDP (150W)
  • Memory Speed: DDR4-2666 - Max (up to 3200MT/s)
  • Maximum Memory: 1TB (32 DIMM Slots)
  • Installed Memory: 64GB ECC RDIMM
  • Internal Storage Controllers: Support 12 x 3.5-inch hard drive carrier (support 2.5-inch HDD/SSD) (support RAID 0, 1, 1E, and 10)
  • Installed HDD: 12 x 1TB HDD
  • Security Device: Trusted Platform Module 2.0
  • Network: Onboard 1× 1Gbps IPMI, Support 1×OCP3.0
  • Power Supply: Dual Hot-plug, Redundant Power Supply (1+1)
  • Rear Ports: 1×VGA, 2×USB3.0, 1×RJ45 for BMC, 1×DB9 COM, 1×UID
  • Front Ports: 1×VGA, 2×USB3.0
  • Accessories: Power Cord, Sliding rails, Keyboard & Mouse
  • Operating System: No OS
  • Garansi: 3 Tahun
Unduh Driver untuk DAC DRAGON SVR XS22V2 5317 (SVMECI)
DAC DRAGON SVR XS22V2 4310 (SVUXZQ)
  • Base: DAC DRAGON SVR XS22V2 Server
  • Rackmount: 2U Chassis
  • Processor: 3rd Generation Intel Xeon Scalable processors
  • Installed Processor: Intel® Xeon® Silver 4310, 2.10GHz, 12C/24T,18M Cache, 10.4GT/s, Turbo, TDP (120W)
  • Memory Speed: DDR4-2666 - Max (up to 3200MT/s)
  • Maximum Memory: 1TB (32 DIMM Slots)
  • Installed Memory: 32GB ECC RDIMM
  • Internal Storage Controllers: Support 12 x 3.5-inch hard drive carrier (support 2.5-inch HDD/SSD) (support RAID 0, 1, 1E, and 10)
  • Installed HDD: 12 x 1TB HDD
  • Security Device: Trusted Platform Module 2.0
  • Network: Onboard 1× 1Gbps IPMI, Support 1×OCP3.0
  • Power Supply: Dual Hot-plug, Redundant Power Supply (1+1)
  • Rear Ports: 1×VGA, 2×USB3.0, 1×IPMI RJ45 for BMC, 1×DB9 COM, 1×UID
  • Front Ports: 1×VGA, 2×USB3.0
  • Accessories: Power Cord, Sliding rails, Keyboard & Mouse
  • Operating System: No OS
  • Garansi: 3 Tahun
Unduh Driver untuk DAC DRAGON SVR XS22V2 4310 (SVUXZQ)
DAC DRAGON SVR XS22V2 (SV5RWX)
  • Base: DAC DRAGON SVR XS22V2 Server
  • Rackmount: 2U Chassis
  • Chipset: Intel C621A
  • Processor: 1 or 2x 3rd Generation Intel Xeon Scalable Processors
  • Installed Processor: Intel® Xeon® Silver 4310, 2.1G, 12C/24T, 18M Cache, 10.4GT/s, Turbo, TDP (120W)
  • Memory: 1TB (32 DIMM Slots, up to 3200MT/s), DDR4-2666 - Max
  • Installed Memory: 32GB ECC RDIMM
  • Internal Storage Controllers: Support 12x 3.5-inch hard drive carrier (support 2.5-inch HDD/SSD) (support RAID 0, 1, 1E, and 10)
  • Installed HDD: 2x 1TB HDD
  • Security Device: Trusted Platform Module 2.0
  • Network: Onboard 1 × 1Gbps IPMI, Support 1 × OCP NIC 3.0
  • Power Supply: Dual Hot-plug, Redundant Power Supply (1+1) 550Watt
  • Rear Ports: 1×VGA, 2×USB3.0, 1×IPMI RJ45, 1×DB9 COM, 1×UID
  • Front Ports: 1×VGA, 2×USB3.0
  • Accessories: Power Cord, Sliding rails, Keyboard & Mouse
  • Operating System: No OS
  • Garansi: 3 Tahun
Unduh Driver untuk DAC DRAGON SVR XS22V2 (SV5RWX)
DAC DRAGON SVR XS22V2 5317 (SVMECI)
  • Base: DAC DRAGON SVR XS22V2 Server
  • Rackmount: 2U Chassis
  • Processor: 3rd Generation Intel Xeon Scalable processors
  • Installed Processor: Intel® Xeon® Gold 5317, 3.0GHz, 12C/24T,18M Cache, 11.2GT/s, Turbo, TDP (150W)
  • Memory: 1TB (32 DIMM Slots, up to 3200MT/s), DDR4-2666 - Max
  • Installed Memory: 64GB ECC RDIMM
  • Internal Storage Controllers: Support 12 x 3.5-inch hard drive carrier (support 2.5-inch HDD/SSD)(suport RAID 0, 1, 1E, and 10)
  • Installed HDD: 12 x 1TB HDD
  • Security Device: Trusted Platform Module 2.0
  • Network: Onboard 1 × 1Gbps IPMI | Support 1 × OCP NIC 3.0
  • Power Supply: Dual Hot-plug, Redundant Power Supply (1+1) 1300Watt
  • Rear Ports: 1×VGA, 2×USB3.0, 1×IPMI RJ45, 1×DB9 COM, 1×UID
  • Front Ports: 1×VGA, 2×USB3.0
  • Accessories: Power Cord, Sliding rails, Keyboard & Mouse
  • Operating System: No OS
  • Garansi: 3 Tahun
Unduh Driver untuk DAC DRAGON SVR XS22V2 5317 (SVMECI)
DAC DRAGON SVR XS22V2 4310 (SVUXZQ)
  • Base: DAC DRAGON SVR XS22V2 Server
  • Rackmount: 2U Chassis
  • Processor: 3rd Generation Intel Xeon Scalable processors
  • Installed Processor: Intel® Xeon® Silver 4310, 2.10GHz, 12C/24T,18M Cache, 10.4GT/s, Turbo, TDP (120W)
  • Memory: 1TB (32 DIMM Slots, up to 3200MT/s), DDR4-2666 - Max
  • Installed Memory: 32GB ECC RDIMM
  • Internal Storage Controllers: Support 12 x 3.5-inch hard drive carrier (support 2.5-inch HDD/SSD) (suport RAID 0, 1, 1E, and 10)
  • Installed HDD: 12 x 1TB HDD
  • Security Device: Trusted Platform Module 2.0
  • Network: Onboard 1 × 1Gbps IPMI | Support 1 × OCP NIC 3.0
  • Power Supply: Dual Hot-plug, Redundant Power Supply (1+1) 1300Watt
  • Rear Ports: 1×VGA, 2×USB3.0, 1×IPMI RJ45, 1×DB9 COM, 1×UID
  • Front Ports: 1×VGA, 2×USB3.0
  • Accessories: Power Cord, Sliding rails, Keyboard & Mouse
  • Operating System: No OS
  • Garansi: 3 Tahun
Unduh Driver untuk DAC DRAGON SVR XS22V2 4310 (SVUXZQ)
DAC DRAGON TSVR DSG5520+ (SV5WQ3)
  • Processor: Intel Xeon Gold 5520+
  • Memory: DDR5 256GB
  • Storage: 512GB SSD + 4TB HDD
  • Storage Controller: RAID CONTROLLER
  • Optical Drive: DVD RW Ext
  • Ports: VGA PORT, DUAL GIGABIT LAN, DUAL 10G SFP
  • Power Supply: WS 650W
  • Operating System: WINDOWS SERVER 2022
  • Display: LCD 23.8"
  • Garansi: 3/3/0
Unduh Driver untuk DAC DRAGON TSVR DSG5520+ (SV5WQ3)
